In today’s agriculture and commercial sectors, reliable power generation has become more critical than ever before. A PTO driven generator represents one of the most efficient and cost-effective solutions for portable power generation, allowing operators to transform their existing tractors, trucks, and other vehicles into mobile power stations. These innovative systems harness the mechanical power from your vehicle’s engine through the Power Take-Off shaft, converting it into clean electrical energy for a wide range of applications.
The growing popularity of PTO generators stems from their ability to provide substantial cost savings while delivering reliable power exactly where it’s needed. Unlike traditional standalone generators that require separate engines, fuel systems, and maintenance schedules, a power take-off generator leverages your existing equipment investment, making it an intelligent choice for farmers, contractors, and emergency responders who need dependable portable power solutions.
What Makes PTO Driven Generators Superior Power Solutions
A PTO driven generator operates by connecting directly to your tractor’s power take-off shaft, which transfers mechanical energy from the engine to the generator’s alternator. This elegant system eliminates the need for a separate engine, reducing complexity, maintenance requirements, and operational costs significantly. The connection process is straightforward: the generator mounts to your tractor’s three-point hitch system, and the PTO shaft connects to your vehicle’s standard 540 RPM or 1000 RPM power take-off.
The mechanical advantage of PTO generators becomes apparent when examining power efficiency ratings. Around 2 HP is used in generating 1 KW of energy, making these systems remarkably efficient for power conversion. This efficiency translates directly into fuel savings and reduced operational costs compared to traditional portable generators.
Modern PTO driven generator units incorporate advanced voltage regulation systems that maintain consistent electrical output despite variations in engine RPM. These sophisticated control systems ensure clean, stable power suitable for sensitive electronic equipment, making them ideal for both agricultural applications and emergency power situations where power quality is crucial.
Key Benefits That Set PTO Generators Apart
Cost Efficiency and Economic Advantages
The financial benefits of choosing a PTO driven generator over traditional alternatives are substantial and multi-faceted. PTO generators rely on these vehicles’ engines, the PTOs cost about half as much as standalone generators, representing significant upfront savings for businesses and farmers. This cost advantage extends beyond initial purchase price to include ongoing operational expenses.
Maintenance costs remain lower because PTO generators don’t require separate engine maintenance, oil changes, or complex fuel system servicing. Your existing tractor engine handles all mechanical power generation, and you’re already maintaining that engine as part of your regular equipment care routine. This consolidated maintenance approach saves both time and money while reducing the complexity of your equipment fleet management.
Fuel efficiency represents another major economic advantage. Instead of running a separate generator engine, your PTO driven generator utilizes the diesel engine in your tractor, which typically offers superior fuel economy compared to smaller gasoline generators. For extended power generation sessions, this fuel efficiency can result in substantial cost savings, particularly given the current fuel price environment.
Reliability and Performance Characteristics
Agricultural and commercial operations demand power systems that perform consistently under challenging conditions. PTO generators excel in reliability because they leverage proven tractor engine technology that’s designed for demanding agricultural applications. These diesel engines are built for extended operation and can handle the continuous load requirements that portable generators often struggle with.
The mechanical connection between your tractor and the PTO driven generator provides several reliability advantages over traditional generators. There’s no separate engine to fail, no additional fuel system to maintain, and no complex starting systems that can malfunction in cold weather. If your tractor starts and runs, your power generation capability is available immediately.
Power output stability represents another significant reliability factor. Modern PTO generators incorporate sophisticated voltage regulation systems that maintain consistent electrical output even when engine RPM varies slightly. Low Harmonic Content – Provides clean power for both farm and home, ensuring that sensitive electronic equipment receives the stable power it requires for proper operation.
Agricultural Applications and Farm Power Solutions
Emergency Backup Power for Farm Operations
Agricultural operations face unique power challenges that make PTO driven generators particularly valuable. PTO generators are often used during power failure events that visit farmers during harsh winter seasons with common ice storms or simply to backup less than reliable utility power grids servicing rural farm locations. These emergency situations can threaten livestock, stored crops, and critical farm infrastructure without reliable backup power.
Dairy operations represent one of the most critical applications for PTO generators during power outages. Milking systems, milk cooling equipment, and ventilation fans require immediate power restoration to prevent significant economic losses. A PTO driven generator can be deployed quickly to restore power to these essential systems, protecting both animal welfare and product quality.
Poultry operations also benefit tremendously from PTO generator backup power capabilities. Modern poultry houses rely heavily on automated feeding systems, ventilation fans, and environmental controls that must continue operating during power outages. The ability to quickly connect a PTO driven generator to your tractor and restore power to these critical systems can prevent catastrophic losses in poultry operations.
Portable Power for Remote Farm Locations
Many agricultural operations require power in locations far from utility grid connections. Whether you drive a John Deere or some other tractor, a PTO generator can be hooked up to bring power to the most remote parts of your property. This capability transforms how farmers approach field operations and remote facility management.
Irrigation system installations frequently require power in remote field locations where grid electricity isn’t available. A PTO driven generator provides the perfect solution for powering water pumps, control systems, and installation equipment in these remote locations. The portability of the system means you can move power generation capability wherever it’s needed on your property.
Temporary livestock facilities, portable buildings, and seasonal operations all benefit from the flexibility that PTO generators provide. Whether you’re setting up temporary shelters during calving season or powering equipment for crop processing in remote locations, the ability to bring reliable power anywhere your tractor can go provides unprecedented operational flexibility.
Commercial and Industrial PTO Generator Applications
Construction Site Power Solutions
Construction and contracting operations have embraced PTO driven generators for their unique combination of portability, reliability, and cost-effectiveness. Construction sites often require power in locations where grid electricity isn’t available or where temporary power connections would be prohibitively expensive. A PTO generator provides an ideal solution for these challenging power requirements.
Heavy construction equipment operators often have trucks or tractors on-site that can power PTO generators, eliminating the need for separate generator units. This approach reduces equipment transportation costs and simplifies site logistics while providing reliable power for tools, lighting, and temporary facilities.
The durability of PTO driven generators makes them particularly suitable for construction environments where equipment faces harsh conditions, dust, and potential physical damage. The robust construction typical of agricultural equipment translates well to construction site requirements, providing reliable power generation capability that can withstand demanding operating conditions.
Emergency Response and Public Safety
Emergency response organizations increasingly rely on PTO generators for disaster response and public safety applications. A PTO or power take-off generator is portable and can be used by attaching it to vehicles like trucks, tractors, ATVs, UTVs, and various other emergency vehicles. This versatility makes them invaluable for emergency response situations where power must be restored quickly.
Fire departments utilize PTO driven generators to power emergency lighting, ventilation equipment, and communication systems during emergency responses. The ability to mount the generator on emergency vehicles and deploy power immediately upon arrival at an emergency scene provides critical operational advantages.
Utility companies employ PTO generators for emergency power restoration work and maintenance operations in remote locations. Utility trucks equipped with PTO systems can provide power for repair work, temporary lighting, and emergency communication systems without requiring separate generator equipment.
Technical Specifications and Performance Parameters
Power Output Ranges and Capabilities
PTO driven generators are available in a wide range of power output ratings to match various application requirements. Entry-level units typically produce 10-15 kW of power, suitable for smaller farm operations, residential backup power, or light commercial applications. generators that only require 14 PTO hp at 540 rpm demonstrate how efficiently these systems convert mechanical power to electrical energy.
Mid-range PTO generators typically produce 20-50 kW of power, making them suitable for larger agricultural operations, commercial construction sites, and industrial applications. These units can power multiple pieces of equipment simultaneously while maintaining stable voltage and frequency output.
High-capacity PTO driven generator systems can produce 75 kW or more of electrical power, suitable for large-scale commercial operations, emergency response situations, or industrial applications requiring substantial power generation capability. These systems typically require larger tractors or trucks with higher horsepower ratings to provide adequate mechanical power input.
| Power Output | PTO HP Required | Typical Applications |
|---|---|---|
| 10-15 kW | 14-20 HP | Small farms, residential backup |
| 20-30 kW | 25-40 HP | Medium farms, light commercial |
| 40-50 kW | 50-65 HP | Large farms, construction sites |
| 75+ kW | 90+ HP | Industrial, emergency response |
RPM Requirements and PTO Compatibility
Most PTO generators are designed to operate at standard PTO speeds of either 540 RPM or 1000 RPM, matching the standard power take-off speeds available on agricultural tractors and commercial vehicles. The choice between these speeds depends on your specific equipment and power requirements, with 540 RPM being the most common for agricultural applications.
PTO driven generator units designed for 540 RPM operation typically incorporate gear reduction systems to achieve optimal generator speeds while maintaining efficient power transfer. Cast Iron Gear-case With Helical Gears – At 515 RPM operating speed makes for effective operation, demonstrating the engineering precision required for reliable operation.
The compatibility between your tractor’s PTO system and the PTO generator is crucial for proper operation. Most modern agricultural tractors provide standardized PTO connections, but it’s essential to verify compatibility before purchase. Some generators include universal mounting systems that accommodate various tractor brands and models.
Selection Criteria for Optimal PTO Generator Performance
Matching Power Requirements to Generator Capacity
Selecting the appropriate PTO driven generator requires careful analysis of your power requirements and available mechanical power from your tractor or vehicle. The first step involves calculating your total electrical load requirements, including both continuous loads and startup surge requirements for motors and other equipment.
PTO generators must be sized not only for continuous power requirements but also for the starting surge current that motors and other inductive loads require. Electric motors typically require 3-5 times their running current during startup, which means your generator must have sufficient capacity to handle these temporary high-current situations without voltage drop or system instability.
The mechanical power available from your tractor’s PTO system limits the electrical power your PTO driven generator can produce. Most tractors provide detailed specifications for PTO horsepower at various engine RPM settings. It’s crucial to ensure that your tractor can provide adequate mechanical power for your chosen generator while maintaining sufficient power reserve for safe operation.
Quality Features and Construction Standards
High-quality PTO generators incorporate several important features that distinguish them from lower-cost alternatives. Voltage regulation systems maintain consistent electrical output despite variations in engine speed, ensuring that sensitive electronic equipment receives stable power. Look for generators with automatic voltage regulation (AVR) systems that provide ±5% voltage stability across the full load range.
Weather protection represents another critical quality factor for PTO driven generators used in agricultural and commercial applications. Quality units feature weatherproof enclosures that protect electrical components from moisture, dust, and debris while providing adequate ventilation for cooling. Compact Design – Easily maneuver and store your PTO generator while maintaining robust construction standards.

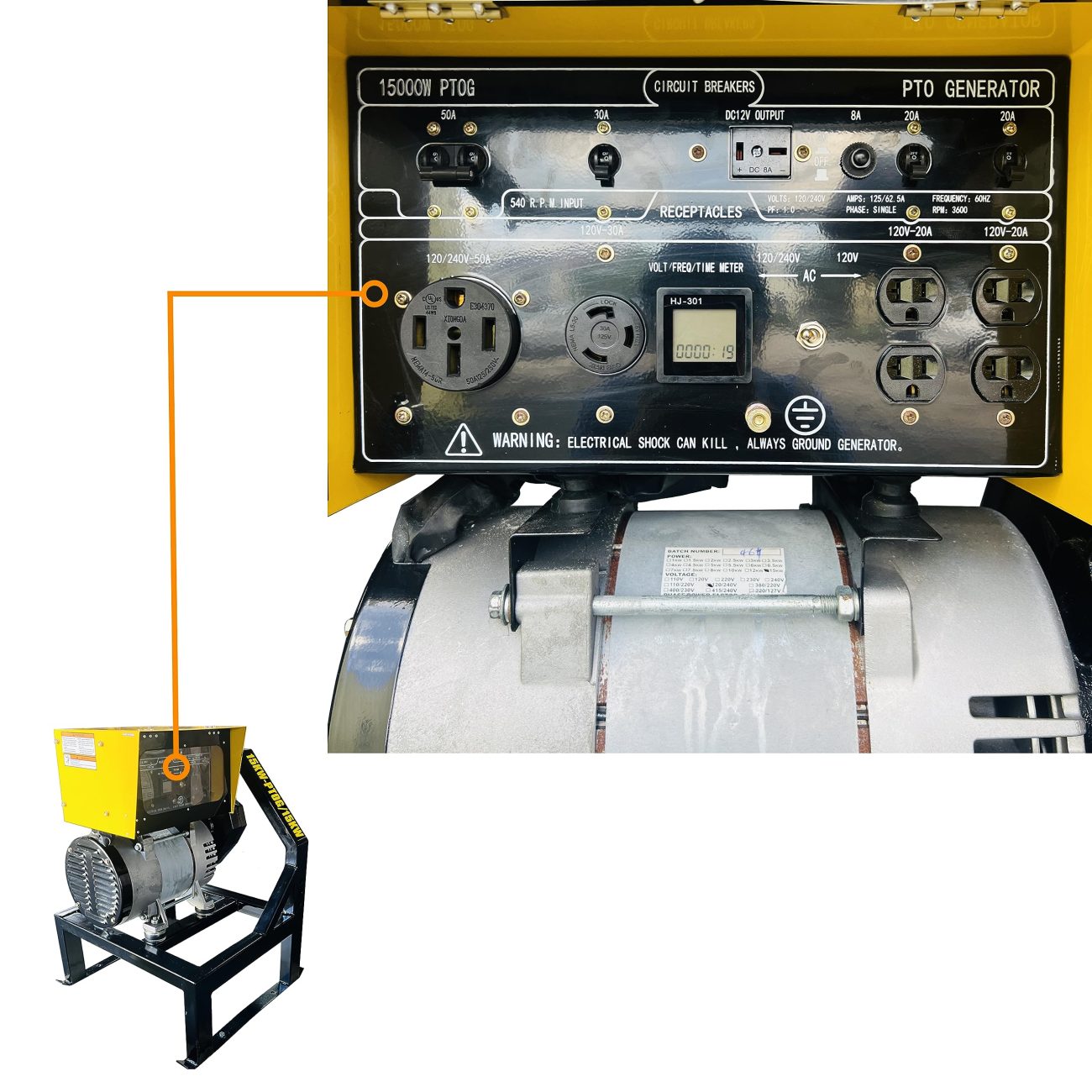

Monitoring and control systems enhance the usability and safety of PTO generators. Voltmeter – A large 3″ voltmeter ensures the proper output, allowing operators to monitor system performance and detect potential problems before they cause equipment damage or power interruption.
Installation and Setup Procedures
Mounting Systems and Mechanical Connections
Proper installation of a PTO driven generator begins with secure mounting to your tractor or vehicle. Most units utilize standard three-point hitch mounting systems that provide stable support while allowing easy attachment and removal. The mounting system must be capable of handling not only the generator’s weight but also the dynamic forces created during operation.
The PTO shaft connection requires careful attention to ensure proper alignment and secure attachment. Universal joints in the PTO shaft accommodate slight misalignments between the tractor’s PTO output and the generator input shaft. However, significant misalignment can cause premature wear, vibration, and potential failure of the drive system.
Safety considerations during installation include ensuring adequate clearance around rotating components, proper grounding of electrical systems, and secure attachment of all mechanical connections. PTO generators operate at high rotational speeds with substantial mechanical forces, making proper installation critical for safe operation.
Electrical Connections and Safety Protocols
Electrical installation of PTO driven generators requires attention to proper grounding, circuit protection, and load distribution. The generator’s electrical output must be properly grounded to ensure safety and optimal performance. Most installations include a dedicated grounding rod connected to the generator frame and electrical output neutral.
Circuit protection systems prevent damage to both the generator and connected equipment in case of overloads or electrical faults. Quality PTO generators include built-in circuit breakers or disconnect switches that allow safe isolation of electrical output during maintenance or emergency situations.
Load management becomes important when operating PTO driven generators at or near their rated capacity. Starting large motors or other high-current loads sequentially rather than simultaneously prevents overloading and maintains system stability. Some installations include load management systems that automatically control equipment startup sequences.
Maintenance Requirements and Operational Best Practices
Routine Maintenance Schedules
PTO driven generators require less maintenance than traditional standalone generators because they don’t have separate engines to service. However, the electrical components and mechanical drive systems still require regular attention to ensure reliable operation and long service life. The generator alternator requires periodic inspection of bearings, electrical connections, and cooling systems.
Gearbox maintenance represents one of the most important service requirements for PTO generators. The gear reduction systems that match PTO speeds to optimal generator speeds require regular oil changes and inspection for wear. Most manufacturers recommend gear oil changes every 500-1000 operating hours, depending on operating conditions and load factors.
Electrical system maintenance includes inspection of output connections, control systems, and voltage regulation components. Dust and moisture can affect electrical performance, making regular cleaning and inspection important for reliable operation. Connection terminals should be kept clean and tight to prevent voltage drop and potential overheating.
Performance Optimization and Troubleshooting
Optimizing PTO driven generator performance requires attention to both mechanical and electrical factors that affect efficiency and output quality. Engine speed control is crucial because most PTO generators are designed for operation at specific RPM ranges. Operating significantly above or below design speeds can reduce efficiency and potentially damage equipment.
Load factor management affects both performance and equipment longevity. PTO generators operate most efficiently when loaded to 75-85% of their rated capacity. Operating at very light loads reduces efficiency and can cause problems with some alternator designs, while operating at maximum capacity reduces equipment life and increases maintenance requirements.
Environmental factors including temperature, humidity, and altitude affect PTO driven generator performance. High altitude reduces power output due to decreased air density, while high temperatures require additional attention to cooling system performance. Understanding these factors helps optimize system performance and prevent operational problems.
Economic Analysis and Return on Investment
Cost Comparison with Alternative Power Solutions
The economic advantages of PTO driven generators become clear when compared to traditional portable generator alternatives over their service life. Initial purchase costs represent only one component of the total cost of ownership, with fuel costs, maintenance expenses, and operational flexibility contributing significantly to long-term economics.
Fuel cost analysis reveals substantial advantages for PTO generators in applications requiring extended operation periods. Diesel fuel used by tractor engines typically costs less per BTU than gasoline used by portable generators, and diesel engines operate more efficiently, further reducing fuel consumption per kWh generated.
Maintenance cost comparisons show significant advantages for PTO driven generators because they eliminate the need to maintain a separate engine, fuel system, and starting system. Employing a PTO generator means that these workers don’t have to maintain and repair another engine, which saves time and ongoing costs. This maintenance consolidation provides both cost savings and operational simplification.
Productivity and Operational Benefits
The productivity benefits of PTO generators extend beyond simple cost savings to include operational advantages that improve overall business efficiency. The ability to deploy power generation capability wherever your tractor can go eliminates the need for separate power equipment transportation and setup time.
Operational flexibility represents a significant productivity advantage. PTO generators can also be handy portable power around your ranch or farm, providing on-demand power for temporary operations, emergency situations, and remote work locations. This flexibility can enable new operational approaches that weren’t previously feasible.
The reliability advantages of PTO driven generators translate directly into productivity benefits by reducing downtime and power-related delays. Agricultural operations particularly benefit from this reliability during critical periods like harvest, when power outages could result in significant crop losses or quality problems.
Environmental Impact and Sustainability Considerations
Reduced Carbon Footprint and Environmental Benefits
PTO driven generators offer several environmental advantages over traditional portable generator alternatives. Sustainability: PTO generators reduce the reliance on fuel-powered engines, lowering carbon footprints and energy costs. By utilizing existing tractor engines instead of requiring separate generator engines, these systems reduce overall fuel consumption and emissions.
The fuel efficiency advantages of diesel engines used in tractors translate directly into reduced environmental impact. Diesel engines typically produce 15-20% fewer carbon emissions per kWh generated compared to gasoline engines of similar size, making PTO generators a more environmentally responsible choice for power generation applications.
Reduced equipment manufacturing requirements represent another environmental benefit. By eliminating the need for separate generator engines, PTO driven generators require fewer raw materials and manufacturing resources per unit of power generation capability. This reduction in manufacturing impact contributes to their overall environmental advantage.
Noise Reduction and Community Impact
Noise pollution represents a significant concern in many power generation applications, particularly in residential and agricultural areas where traditional generators can disturb neighbors and livestock. PTO generators often operate more quietly than comparable portable generators because they utilize larger, slower-running diesel engines that produce less noise per unit of power output.
The operational characteristics of tractor engines also contribute to reduced noise impact. Agricultural tractors are designed for extended operation in noise-sensitive environments, with sound dampening and exhaust systems optimized for acceptable noise levels during normal farm operations.
Community relations benefits from reduced noise and emissions make PTO driven generators more acceptable for use in areas where traditional generators might face restrictions or complaints. This social acceptance can be important for commercial operations that must maintain good relationships with neighboring properties.
Future Trends and Technology Developments
Advanced Control Systems and Smart Technology Integration
The evolution of PTO driven generator technology increasingly incorporates smart controls and remote monitoring capabilities that enhance operational efficiency and reliability. Modern systems include digital control panels that provide real-time monitoring of electrical output, engine parameters, and system status information.
Remote monitoring capabilities allow operators to monitor PTO generator performance from mobile devices or central control systems. This technology enables proactive maintenance scheduling, performance optimization, and rapid response to operational issues that could affect power quality or system reliability.
Integration with farm management systems represents an emerging trend that allows PTO generators to communicate with other farm equipment and control systems. This integration enables automated responses to power outages, coordinated equipment operation, and data logging for performance analysis and optimization.
Emerging Applications and Market Expansion
The market for PTO driven generators continues to expand beyond traditional agricultural applications into new sectors that recognize their advantages. Emergency response organizations increasingly utilize these systems for disaster response, utility maintenance, and public safety applications where reliable portable power is critical.
Renewable energy integration represents an emerging application area where PTO generators provide backup power for solar and wind installations in remote locations. The ability to provide immediate power generation capability when renewable sources are unavailable makes these systems valuable components of hybrid power systems.
